ALOx PET Film(ALOx-P101)
ALOx PET Film(ALOx-P101)

ALOx PET Film(ALOx-P101)

Description:

ALOx-P101 is a transparent, high barrier, biaxially oriented polyester film, base material is transparent PET, ALOx coated on corona treated side, another side is plain surface.



Applications:

• Food Packaging: candy, tea, noodles, cakes
• Wet Packaging: mushroom, milk
• Microwaveable packaging




Key features:

• Sustainable and Eco-friendly
• High barrier of moisture, oxygen, gas, aroma
• Super transparency
• Boiled and microwaveable property




Attentions :

• The product should be stored in a tidy, dry and ventilated warehouse and should not be exposed with direct sunlight/light or heat sources.

• The product should be packed completely until using to isolate moisture.

• Film guarantee shelf life within 6 months since date of manufacturing, only if stored in recommended condition.

• The product should be handled gently and carefully to avoid the collisions .

• Stable composite procee is required.

• The film tension should not exceed 2% elongation during production, otherwise the ALOx coating may crack and then affect performance.

• When the product is used for extruded PE, the temperature cannot be too high and the extruded PE thickness cannot exceed 15mic, otherwise ALOx coating may crack.

•  Package contents can not be over-acid, if PH<4, the acid will corrode ALOx coating.

ITEM

UNIT

TYPICAL VALUE

TESTING STANDARD

Thickness

Mic(Guage)

10(40)

ASTM D374

WVTR (38℃ & 90%RH)

g/(m² · day)

1.4

ASTM F1249

OTR (23℃ & 0%RH)

cc/(m² · day)

2.1

ASTM D3985

Light Transmittance

%

87

Internal Method

Boiling resistance

Boilable

Internal Method



PRODUCT TYPE

ALOx-P101

ALOx-P121

ALOx-P122-A

ALOx-P122-B

ALOx-P123

APPLICATIONS

lamination

lamination

printing

printing

printing

WITH COATING(YES/NO)

no

no

yes

yes

yes

BOILING RESISTANCE(YES/NO)

yes

yes

no

no

yes

ITEM

UNIT

TYPICAL
VALUE

TYPICAL
VALUE

TYPICAL
VALUE

TYPICAL
VALUE

TYPICAL
VALUE

THICKNESS

μm

10

12.5

12.5

12.5

12.5

WVTR (38℃ & 90%RH)

g/(m² · day)

1.4

1.1

0.8

1.0

0.6

OTR (23℃ & 0%RH)

cc/(m² · day)

2.1

2.0

0.3

1.8

0.4

TRANSMITTANCE

%

87

87

87

87

87

WETTING TENSION

ALOX LAYER OR COATING LAYER

mN/m

60

60

56

46

56

DYNAMIC FRICTION

ALOX LAYER OR COATING LAYER
/UNTREATED SIDE

/

0.6

0.6

0.5

0.4

0.5

Understand Us
Zhejiang Changyu New Materials Co., Ltd.
Zhejiang Changyu New Materials Co., Ltd.
Established in April 2000, Zhejiang Changyu New Materials Co., Ltd., is a professional manufacturer of high barrier metallized film, coated film, ALOx film in China. We keep stable cooperation with famous enterprises like Amcor, Bemis, Zijiang.
We have about 350 employees and the factory covers an area of 40,000 square meters. With 16 metallizing equipment and 5 coating equipment, our annual output is 100,000 MT various metallized film and 8,000 MT coated film. The introduction of alumina equipment and crucible metalizer from Germany are committed to the development of high-end products. Our main products include VMPET, VMCPP, VMBOPP, PVDC coated film, Acrylic coated film, ALOx PET film.
Changyu is the pioneer and advocator of "transparent aluminum oxide film for packaging" in the Chinese market, we have made unremitting efforts for the development and promotion of this product, changyu is also the consitutor of ongoing major national standard project" Quality general rules of oxides barrier transparent plastics laminated films and pouches for food packaging".
After years’ development, Changyu’s products are very popular in domestic market, we also export to Southeast Asia, Europe, America and other international markets. With technology and professional cooperation, Changyu has won good reputation in the market.

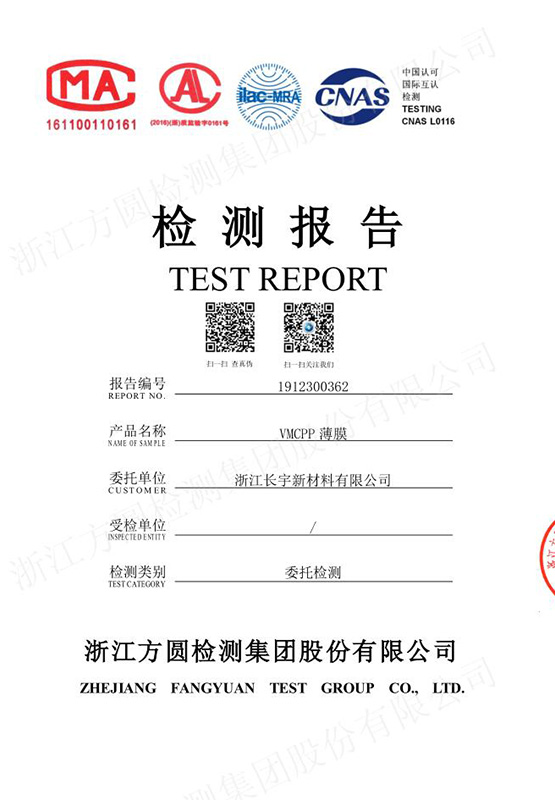

In 2013, Changyu was awarded the title of National High-tech Enterprise based on more than 100 utility model patents and multiple invention patents. We have passed the ISO9001 by BSI from British, and the testing of the SGS, FDA.
